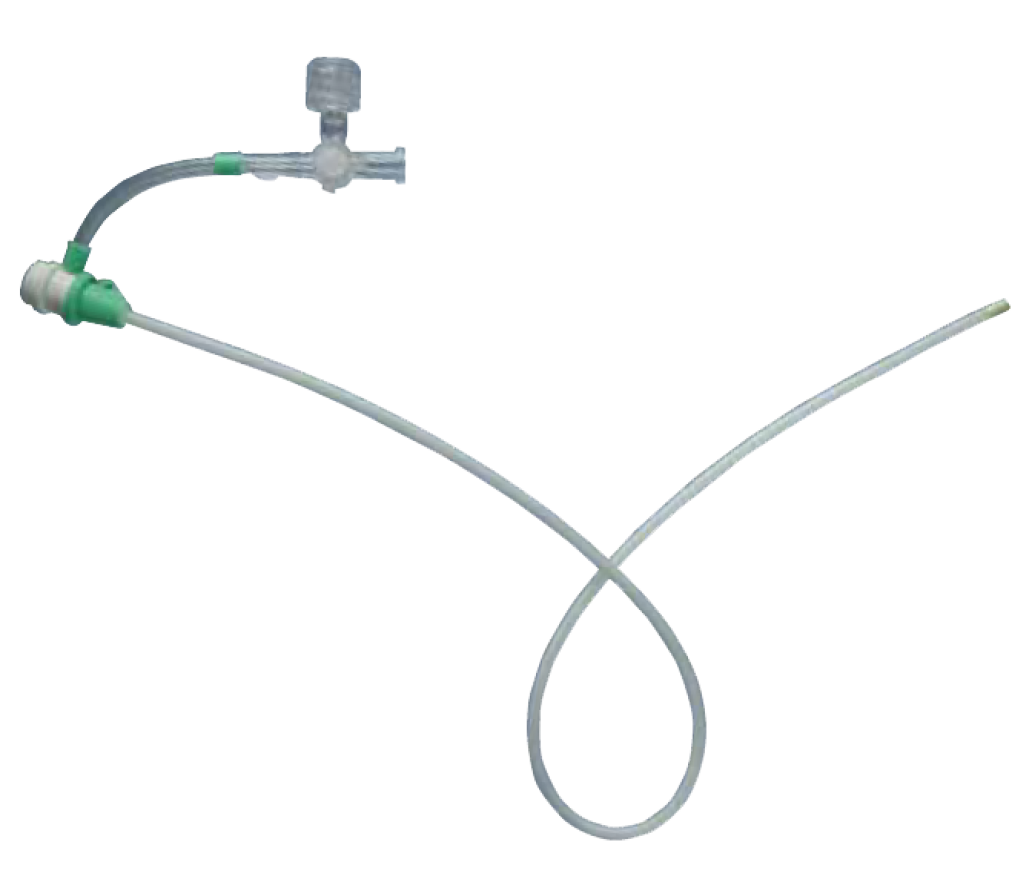

BRITE TIP Sheath Introducer
The BRITE TIP® Sheath Introducer, with its tungsten-filled radiopaque tip, facilitates accurate interventional positioning.
Product Description
The Cordis BRITE TIP Sheath Introducer offers excellent visualization of the sheath’s distal tip with its tungsten-filled radiopaque tip that facilitates accurate positioning.
- The manicured tip and dilator design offer tapered transitions on the sheath and dilator for atraumatic vessel entry and improved patient comfort.
- The unique SLIX hemostatic valve is designed in a six-cut spiral to offer free catheter movement without blood reflux or air aspiration.
- The dual layer kink resistant cannula offers flexibility and support to access tortuous vessels.
- The silicone coated cannula and vessel dilator facilitate lubricious, anti-thrombogenic vessel entry.
- It is available in longer lengths up to 90cm for a wide variety of interventional procedures.
- Convenient packaging with 5.5 cm, 11 cm and 23 cm lengths in 5 units per package, while 35 cm or longer lengths come with 2 units per package.
Product Characteristics
Scroll, sort or search for the particular BRITE TIP Sheath Introducer's part number of interest.
| SKU | Product Description | Sheath Compatibility (F) | Shape | Cath Length (cm) | Mini Guidewire Included | Obturator Included | Needle Included |
|---|---|---|---|---|---|---|---|
| SRAM17661 | BRITE TIP SHEATH MODIFIED 4F 45CM STR .035" | 4 | Straight (STR) | 45 | Yes | n/a | 21G Bare |
| SRA0217 | BRITE TIP SHEATH MODIFIED 6F 70CM STR | 6 | Straight (STR) | 70 | Yes | n/a | 21G Bare |
| SRA0117 | BRITE TIP SHEATH INTRODUCER 5F 0.035" 4.5CM STR | 5 | Straight (STR) | 4.5 | Yes | n/a | 21G Bare |
| SRA0116 | BRITE TIP SHEATH INTRODUCER 4F 0.035" 4.5CM STR | 4 | Straight (STR) | 4.5 | Yes | n/a | 21G Bare |
| SRA0035 | BRITE TIP SHEATH MODIFIED 5F 5.5CM .035" | 5 | Straight (STR) | 5.5 | Yes | n/a | 21G Bare |
| 401935M | BRITE TIP SHEATH INTRODUCER 9F 0.035" 35CM STR | 9 | Straight (STR) | 35 | No | n/a | n/a |
| 401923M | BRITE TIP SHEATH INTRODUCER 9F 0.035" 23CM STR | 9 | Straight (STR) | 23 | No | n/a | n/a |
| 401911M | BRITE TIP SHEATH INTRODUCER 9F 0.035" 11CM STR | 9 | Straight (STR) | 11 | Yes | n/a | n/a |
| 401855M | BRITE TIP SHEATH INTRODUCER 8F 0.035" 55CM STR | 8 | Straight (STR) | 55 | No | n/a | n/a |
| 401845M | BRITE TIP SHEATH INTRODUCER 8F 0.035" 45CM STR | 8 | Straight (STR) | 45 | No | n/a | n/a |
| 401835M | BRITE TIP SHEATH INTRODUCER 8F 0.035" 35CM STR | 8 | Straight (STR) | 35 | No | n/a | n/a |
| 401823M | BRITE TIP SHEATH INTRODUCER 8F 0.035" 23CM STR | 8 | Straight (STR) | 23 | No | n/a | n/a |
| 401811M | BRITE TIP SHEATH INTRODUCER 8F 0.035" 11CM STR | 8 | Straight (STR) | 11 | Yes | n/a | n/a |
| 401805M | BRITE TIP SHEATH INTRODUCER 8F 0.035" 5.5CM STR | 8 | Straight (STR) | 5.5 | Yes | n/a | n/a |
| 401790M | BRITE TIP SHEATH INTRODUCER 7F 0.035" 90CM STR | 7 | Straight (STR) | 90 | No | n/a | n/a |
| 401755M | BRITE TIP SHEATH INTRODUCER 7F 0.035" 55CM STR | 7 | Straight (STR) | 55 | No | n/a | n/a |
| 401745M | BRITE TIP SHEATH INTRODUCER 7F 0.035" 45CM STR | 7 | Straight (STR) | 45 | No | n/a | n/a |
| 401735M | BRITE TIP SHEATH INTRODUCER 7F 0.035" 35CM STR | 7 | Straight (STR) | 35 | No | n/a | n/a |
| 401723M | BRITE TIP SHEATH INTRODUCER 7F 0.035" 23CM STR | 7 | Straight (STR) | 23 | No | n/a | n/a |
| 401711M | BRITE TIP SHEATH INTRODUCER 7F 0.035" 11CM STR | 7 | Straight (STR) | 11 | Yes | n/a | n/a |
| 401705M | BRITE TIP SHEATH INTRODUCER 7F 0.035" 5.5CM STR | 7 | Straight (STR) | 5.5 | Yes | n/a | n/a |
| 401690M | BRITE TIP SHEATH INTRODUCER 6F 0.035" 90CM STR | 6 | Straight (STR) | 90 | No | n/a | n/a |
| 401655M | BRITE TIP SHEATH INTRODUCER 6F 0.035" 55CM STR | 6 | Straight (STR) | 55 | No | n/a | n/a |
| 401645M | BRITE TIP SHEATH INTRODUCER 6F 0.035" 45CM STR | 6 | Straight (STR) | 45 | No | n/a | n/a |
| 401635M | BRITE TIP SHEATH INTRODUCER 6F 0.035" 35CM STR | 6 | Straight (STR) | 35 | No | n/a | n/a |
| 401623M | BRITE TIP SHEATH INTRODUCER 6F 0.035" 23CM STR | 6 | Straight (STR) | 23 | No | n/a | n/a |
| 401611M | BRITE TIP SHEATH INTRODUCER 6F 0.035" 11CM STR | 6 | Straight (STR) | 11 | Yes | n/a | n/a |
| 401605M | BRITE TIP SHEATH INTRODUCER 6F 0.035" 5.5CM STR | 6 | Straight (STR) | 5.5 | Yes | n/a | n/a |
| 401555M | BRITE TIP SHEATH INTRODUCER 5F 0.035" 55CM STR | 5 | Straight (STR) | 55 | No | n/a | n/a |
| 401545M | BRITE TIP SHEATH INTRODUCER 5F 0.035" 45CM STR | 5 | Straight (STR) | 45 | No | n/a | n/a |
| 401535M | BRITE TIP SHEATH INTRODUCER 5F 0.035" 35CM STR | 5 | Straight (STR) | 35 | No | n/a | n/a |
| 401523M | BRITE TIP SHEATH INTRODUCER 5F 0.035" 23CM STR | 5 | Straight (STR) | 23 | No | n/a | n/a |
| 401511M | BRITE TIP SHEATH INTRODUCER 5F 0.035" 11CM STR | 5 | Straight (STR) | 11 | Yes | n/a | n/a |
| 401423M | BRITE TIP SHEATH INTRODUCER 4F 0.035" 23CM STR | 4 | Straight (STR) | 23 | No | n/a | n/a |
| 401411M | BRITE TIP SHEATH INTRODUCER 4F 0.035" 11CM STR | 4 | Straight (STR) | 11 | Yes | n/a | n/a |
| 401123M | BRITE TIP SHEATH INTRODUCER 11F 0.035" 23CM STR | 11 | Straight (STR) | 11 | Yes | n/a | n/a |
| 401111M | BRITE TIP SHEATH INTRODUCER 11F 0.035" 11CM STR | 11 | Straight (STR) | 11 | Yes | n/a | n/a |
| 401023M | BRITE TIP SHEATH INTRODUCER 10F 0.035" 23CM STR | 10 | Straight (STR) | 23 | No | n/a | n/a |
| 401011M | BRITE TIP SHEATH INTRODUCER 10F 0.035" 11CM STR | 10 | Straight (STR) | 11 | No | n/a | n/a |
IFU
Please refer to the Instructions for Use for complete information, including indications, precautions, warnings, and potential adverse events.
